Weighing Indicators
Provide your operators with all the information they need, right where they need it. Eilersen weighing indicators have easy-to-read LCD or LED panels with robust and durable capacitive touch keyboards. The flexible weighing indicators are fully digital, OIML certified, and have outstanding connectivity for fieldbus and PC based networks.
Delivered with software for standard weighing applications or in OEM versions with customized firmware and software.

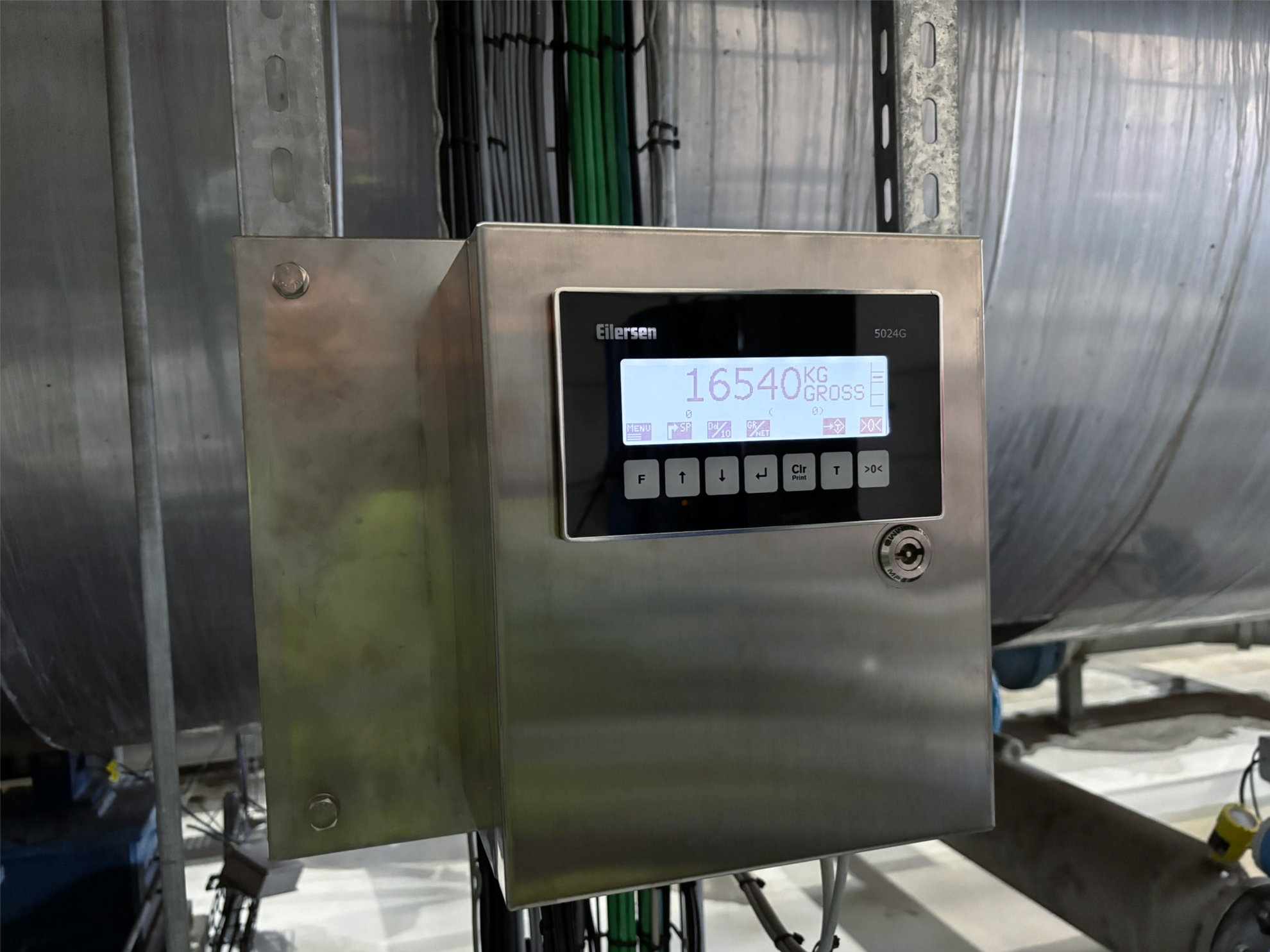

Digital LCD Weighing Indicator 5024G
Fully digital OIML certified weighing indicator type 5024G with alibi memory and software for standard weighing applications. Digital signal processor for displaying and processing data from the Eilersen range of digital load…5024G vs PLC Block Comparison
This comparison assumes standard software (StdLim / Basic) in 5024G indicator and 4XXX module.
What is the 5024 Indicator?
The 5024G is a complete, stand-alone weighing indicator with a local display, intelligent setup features, advanced diagnostics, and integrated weighing functionality. It stores calibration and zero values internally, and enables the possibility of customized software/filters. The 5024G can operate independently of a PLC, making it suitable for certified weighing applications (legal-for-trade), installations where a local display is required, and applications where built-in dosing, totals or afterflow-correction handling is required.
What is a PLC weighing block?
A PLC weighing block is designed to integrate directly into an automation system. It provides basic weighing functionality through the PLC, but it does not include a local display. Calibration and zero values are stored in the PLC, while some functionality, such as linearization, zero tracking, unbalanced detection, dosing, totals and afterflow-correction handling, is limited or unavailable. PLC blocks typically rely on the PLC’s communication cycle, meaning slower response times for digital I/O.
| Feature | 5024G Indicator | PLC Block |
|---|---|---|
| Local display and operation | Yes | Yes * |
| Storage of zero and calibration | Yes (in 5024G) | Yes (in PLC) |
| Replace 5024G without loss of zero/calibration | No | - |
| Replace 4x50/4x70 without loss of zero/calibration | - | Yes |
| Operation without PLC (local display at each weighing system) | Yes | No |
| Verification for certified weighing (legal-for-trade) | Yes | No |
| Intelligent setup for easy and fast setup of weighing parameters | Yes | No |
| Debugging using error codes, LcSignals[x], LC diagnostics etc. | Yes | Partial |
| Standard weighing features (Gross/Net, Zero/Tare, Calibration) | Yes | Yes |
| System corner calibration | Yes | No |
| Linearization | Yes | No |
| Zero tracking | Yes | No |
| Steady determination | Yes | No |
| Adjustable measurement time (integration period) | 20 - 1000 ms | 20/100/200/400 ms |
| Digital filtering | Yes – Multiple | Yes – Single |
| Unbalanced detection (detects uneven weight on the load cells) | Yes | No |
| LIMP mode (in case of load cell failure) | Yes | No |
| Built-in dosing, totals and afterflow correction handling | Yes | No |
| Fast (max. 10 ms) digital I/O response independent of communication | Yes | No |
| Built-in analog output | Yes | No |
| Remote sub display | Yes | No |
| Ethernet based printer communication/printout | Yes | No |
* Integrated in the HMI
Flexible and easy-to-use weighing indicators
Robust and flexible, ideal for process industries and demanding environments
Capacitive touch keyboard designed for use in industrial environments, ensuring you the most robust solution on the market. All versions can be supplied for panel mounting or in stainless steel housing for easy installation and cleaning.
Fully digital weighing indicators
Eilersen weighing indicators are fully digital. There is no loss of signal as there is no need for A/D conversion. As a result, you get the highest resolution possible, and the most accurate results with up to 99.99% accuracy.
Easy on-site controlling
Empower your operators with the powerful weighing indicators from Eilersen. The weighing indicators provide your operators with the information they need, right where they need it. The touch capacitive keyboard allow for fast and easy controlling of various functions in other equipment, e.g. pumps, valves and agitators.
Standard applications or customized firmware
Eilersen weighing indicators are equipped with software for all standard weighing applications. For OEM versions, our skilled team of engineers and developers provide customized firmware and software to suit your needs.
Weighing indicators with outstanding connectivity
No matter your preferred communication protocol or interface, we provide a weighing solution. Our weighing indicators are based on a variety of interface modules and have outstanding connectivity for fieldbus and PC based networks. All weighing indicators have standard serial interfaces and optional PROFINET, EtherNet IP, Modbus TCP, Profibus DP and DeviceNet interfaces.
